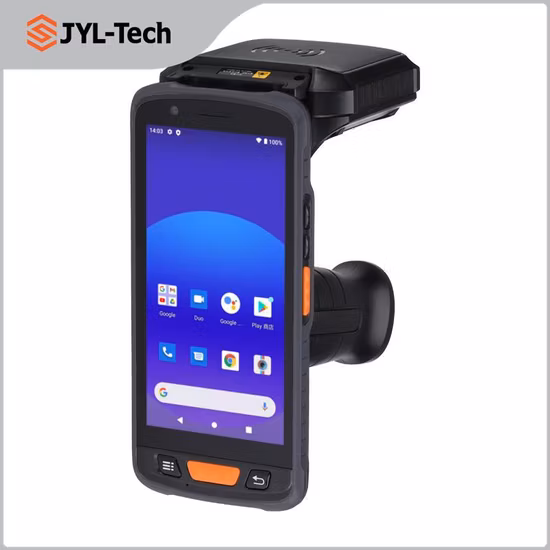

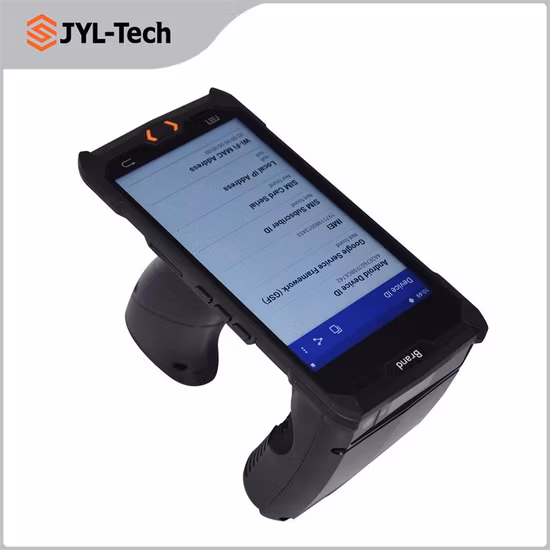

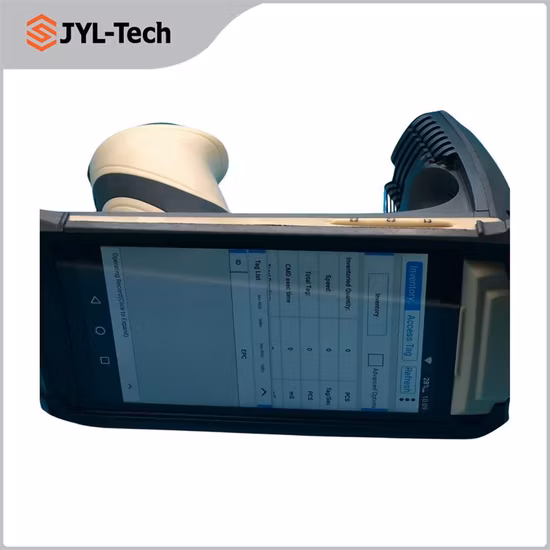

Android Impinj R2000 Long Range PDA UHF RFID Handheld Reader for Warehouse Inventory

Basic Info

Model NO.	UHF Handheld Reader
Bluetooth	Bluetooth 6.0
Delivery Time	7-12 Days
MOQ	1unit
Package	Security Packing
Protection Grade	IP64
Chip	M-2600 Module
3D Real-Time Display	Yes
Design	Outstanding Industrial Design
Color	Two for Options
Super Long Life Cycle	10 Years
Materials	PC+ABS (Sabic) Body
Platform	Computing Platform
Transport Package	by Express, by Air or by Sea
Specification	1pc per box and one box per carton
Trademark	JYL-Tech
Origin	Shanghai
HS Code	8471609000
Production Capacity	10K Per Month

Product Description

Android Bluetooth Long Reading Range RAIN Reader 1D 2D 3G 4G Scanner UHF Handheld RFID Reader

ORCA-50 UHF Handheld Reader Data Terminal Advantages

• High Performance Computing PlatformPowerful hardware configurations to ensure applications like massive data collection, 3D real-time display can be operated smoothly.

• Android 6.0Android 6.0 OS, keep optimizing and updating.

• Top Class MaterialsCast Aluminium, PC+ABS (SABIC) body with 1.1mm thickness tempered glass offer excellent strength + heat dissipation + electromagnetic shielding features. Soft material around the handle offers a comfortable grip.

• Industrial-grade components + super long life cycleIndustrial-grade and military-grade components ensure stable operation in harsh environments. Over ten years of supply can be offered, which provides guarantee for the long term projects.

• Ultra Long Operating TimePistol style hot-swappable battery system makes backup battery more convenient to be restored, so that the operating time is unlimited.( extra batteries are available )

• High-end UHF RFID EngineEquipped with self-developed Rodinbell M-2600 module based on Impinj R2000 chip, offering the best performance and excellent multi-tag identification ability in the industry.

• Outstanding Industrial DesignThe idea was inspired by orca, and each single detail has been well refined. The appearance is compact,elegant and balanced, which makes the product eye-catching and impressive.

• Excellent Mechanical ProtectionSafety drop height 1.6m. With IP64 protection grade to resist dusts and splashes effectively.

specifications:

Mechanical Parameters
Materials	CNCaluminum + nylon(Bayer)
Dimensions	Profile 160x82x129mm
	Grip 111*38*47mm
Weight	640g( Include battery / Standard version)
System Characteristics
Operating System	Android 6.0
CPU	Quad-core Cortex-A17/1.8GHz
GPU	ARM Mali-T764/ High performance3D engine
RAM	2G LPDDR3
	4GLPDDR3 (Optional)
ROM	32GEMMC 5.0
	64G EMMC 5.0 (Optional)
LCD	5.0 Inches /1280°720/ IPS /180 view angle
Touch Screen	1.1mm thickness tempered glass / lO-dot touch / Can be operated with glove
Hotswapping Battery	Pistol style hotswappingbattery system
PSAM	PSAM02 / TI TCA5013 (Optional)
Buttons
Power I Volume*2	3 ALPS buttons/ Operating force 2.2N/Operating life 600,000 cycles
Function Keys	3 ALPS buttons/ Operating force 2.2N/Operating life 600,000 cycles
ScanTrigger	OMRON button/0perating force 127N /Operating life 10,000,000 cycles
Power	6,000mAh chargeable Ii-polymer battery
Card Slots	Micro SIM card slotI PSAM card slot-z
USB Interface	Micro USB / MOlEX connector/Operating life 10,000 cycles
Audio	Large speaker stereosystem
Vibrator	Button style/10mm diameter
Charge Indicator	BicolorLED
Wireless Communications
WIFI	IEEE 802.11 b/g/n
Bluetooth	61uetooth 4.0
3G	Huawei MU609/ Vehicle grade (Optional)
4G	Huawei ME 909s /Vehicle grade (Optional
Application Environment
Operating Temp.	-20ºC to 60ºC
Storage Temp.	-40ºC to 70ºC
Humidity	5%RH to 95%RH(non-condensing)
Protection Grade	IP64
Safety Drop Height	2m /6.56ft.
Data Collections
1D Bar Code (Optional
Engine	Symbol SE955
Support	UPC/EA Symbol SE955N/Code128 /Code39/ Code93/ Cadell/Interleaved 2 of 5/ Discrete 2 of 5/Chinese 2 of 5/ Codabar/ MSI/RSS. etc.
2D Bar Code (Optional)
Engine	Symbol SE4750
Support	Data matrix/QR Code/PDF417/US Planet /UK Postal, etc.
UHF RFID
Engine	JYL-Tech M-2600 module based on Impinj Indy R2000 chip
Buzzer	112°9.5mm 12300±300Hz
Protocol	EPC Global UHF Class 1Gen2 /ISO 18000-6C/ ISO16000-66
Work Frequency	840-960MHz
Output Power	0-33d6m
Peak Inventory Speed	> 500tags/s
UHFAntenna	3dBi circularly polarized antenna
Read Distance	6-7m(Tested tag: Impinj E41b)
Supported Regions	US, Canada and other regionsfollowing us. FCC Europe and other regions following ETSI /EN 302 208/China /Japan/ Korea / Malaysia.
Camera (Optional)	13 megapixels/automaticfocus/flashlight
Global positioning system	GPS&GLONASS
Accessories
Two Batteries Battery Bay Charger&USB Data Cable Hanging lace
