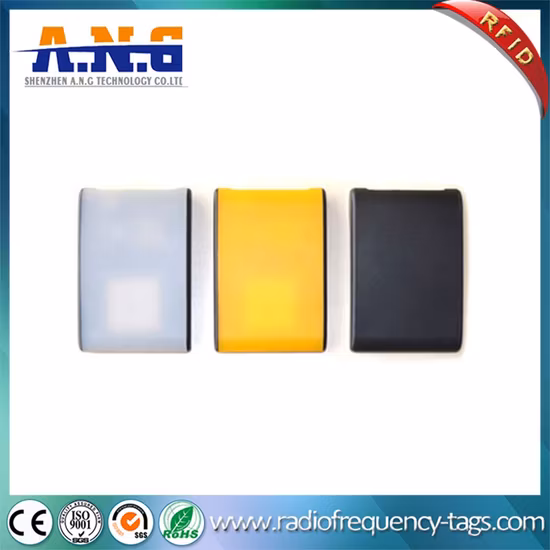

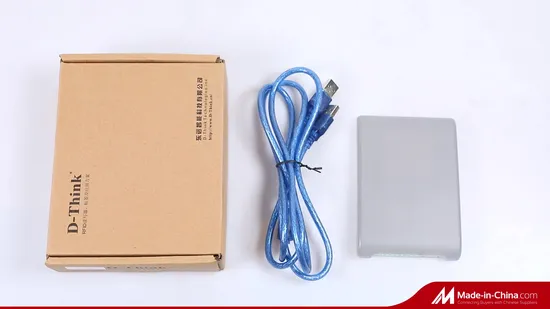

Long Range Desktop UHF RFID Reader to Work in Harsh Environments

Basic Info

Model NO.	reader 100
Function	Information, Encrypt/Decrypt, Payment, Identification, Access Control
Structure	RFID Card
Data Transmission Mode	Serial
Application Field	Access Control
Product	UHF RFID Reader
Transport Package	Individual Poly Bag, Shrink Wrap, Export Carton

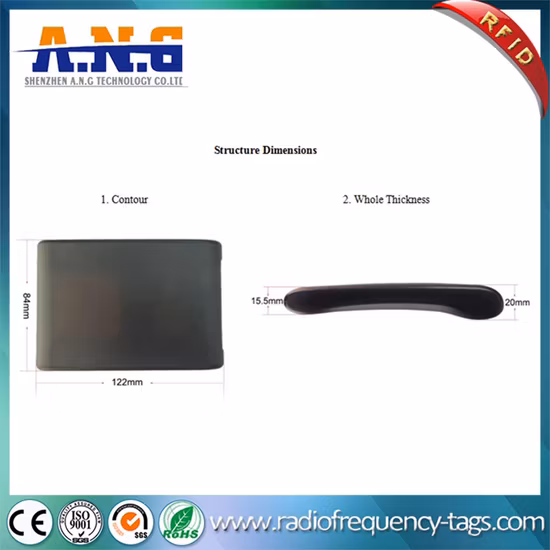

Specification	84*122*15.5cm
Trademark	A. N. G Tech
Origin	Shenzhen
HS Code	8471900090
Production Capacity	1000

Product Description

Long range desktop UHF RFID reader to work in harsh environments

RFID reader 100 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

Electrical Characteristics

Input Voltage	DC 3.5V - 5 V.
Standby Current	<80mA.
Working Current	180mA @ 3.5V (26 dBm Output,25°C).
	110mA @ 3.5V (18 dBm Output,25°C).
Starting Time	<100mS.
Operating Temperature	- 20 °C - + 70 °C
Storage Temperature	- 20 °C - + 85 °C
Operating Humidity	< 95% (+ 25 °C)
Air Interface Protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Spectrum Range	902Mhz - 928Mhz
	865MHz - 868MHz (Optional)
Supported Regions	US, Canada and other regions following U.S. FCC
	Europe and other regions following ETSI EN 302 208
	Mainland China
	Japan
	Korea
	Malaysia
	Taiwan
Output Power	10dBm, 18-26 dBm
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
Receive Sensitivity	< -70dBm
Peak Inventory Speed	> 50 pcs/s
Tag Buffer Size	200 pcs @ 96 bit EPC
Tag RSSI	Supported
Antenna	D-100	2dbi Circular Polarization Antenna. Read range:80cm-200cm (Test tag: Impinj E41b)
	D-101	0dbi Circular Polarization Antenna. Read range:10cm-50cm (Test tag: Impinj E41b)
Host Communication	USB 2.0
	RS-232
	Wiegand 26
	Wiegand 34
Baud Rate	115200 bps ( The default and recommended)
	38400bps

Interface Definition List

PIN	Interface	Description
1	+ 9V	External 9V power supply. (Note: Don't connect an external power supply and USB at the same time.)
2	GND	Common ground with +9V external power.
3	RS-232 TXD	RS-232 data output.
4	RS-232 RXD	RS-232 data input.
5	GND	Common ground with RS-232 interface.
6	GPIO3	GPIO3 or Wiegand Data 0.

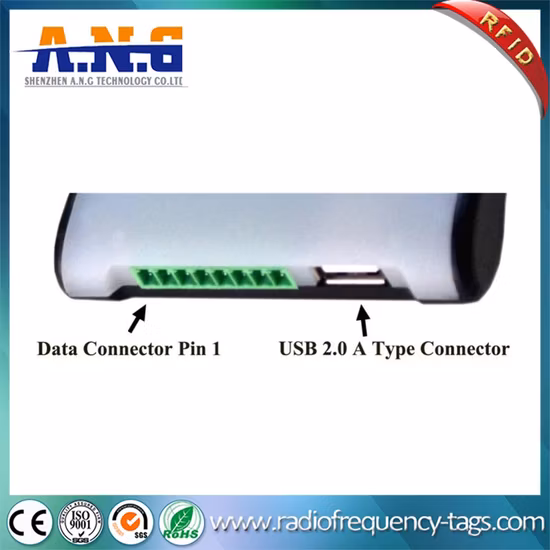

7	GPIO4	GPIO4 or Wiegand Data 1.
8	GND	Common ground with Wiegand data.
